| Tensile Strenght | Size Range | Equivalent Standards | ||||||||||
| Property Class | Diameter | Length | ||||||||||
| Psi. Min. | N/mm2 | Metric | Inch* | Metric | Inch* | I. S. | ISO | DIN | B.S. | ANSI | JIS | |
| Nut Grade | Nut Grade 8/5 | M10 to M42 | -- | -- | -- | 1364 | 4032 | 934 | 1083 | B18.2.4.1M | B1181 | |
| G.8 / G.10 | 1768 | B18.2.2 | ||||||||||

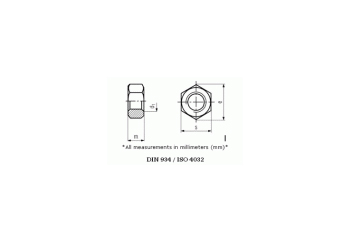

| d1 | s | e | m |
| M2.6 | 5 | 5.51 | 2 |
| M3 | 5.5 | 6.01 | 2.4 |
| M3.5 | 6 | 6.01 | 2.8 |
| M4 | 7 | 7.66 | 3.2 |
| M5 | 8 | 8.76 | 4 |
| M6 | 10 | 11.05 | 5 |
| M7 | 11 | 12.12 | 5.5 |
| M8 | 13 | 14.38 | 6.5 |
| M10 | 17 | 18.9 | 8 |
| M12 | 19 | 21.1 | 10 |
| M14 | 22 | 24.49 | 11 |
| M16 | 24 | 26.75 | 13 |
| M18 | 27 | 29.56 | 15 |
| M20 | 30 | 32.95 | 16 |
| M22 | 32 | 35.03 | 18 |
| M24 | 36 | 39.55 | 19 |
| M27 | 41 | 45.2 | 22 |
| M30 | 46 | 50.85 | 24 |
| M33 | 50 | 55.37 | 26 |
| M36 | 55 | 60.79 | 29 |
| M39 | 60 | 66.44 | 31 |
| M42 | 65 | 71.3 | 34 |
| M45 | 70 | 76.95 | 36 |
| M48 | 75 | 82.6 | 38 |
| M52 | 80 | 88.25 | 42 |
| M56 | 85 | 95.07 | 45 |
