| Tensile Strenght | Size Range | Equivalent Standards | ||||||||||
| Property Class | Diameter | Length | ||||||||||
| Psi. Min. | N/mm2 | Metric | Inch* | Metric | Inch* | I. S. | ISO | DIN | B.S. | ANSI | JIS | |
| -- | 1,050 (12.9) |
M3 to M10 | -- | 6 to 50mm | -- | -- | 7380 | 9427 | 4168 | B18.3.4M | -- | |

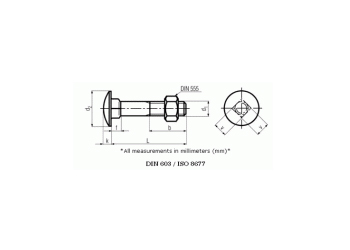

| d1 | d2 max | k max | f max | b to 125 | b to 200 | b over 200 |
| M5 | 13.55 | 3.3 | 4.1 | 16 | - | - |
| M6 | 16.55 | 3.88 | 4.6 | 18 | 24 | - |
| M8 | 20.65 | 4.88 | 5.6 | 22 | 28 | - |
| M10 | 24.65 | 5.38 | 6.6 | 26 | 32 | 45 |
| M12 | 30.65 | 6.95 | 8.75 | 30 | 36 | 49 |
| M16 | 38.8 | 8.95 | 12.9 | 38 | 44 | 57 |
| M20 | 46.8 | 11.05 | 15.9 | - | - | 46 |
