| Tensile Strenght | Size Range | Equivalent Standards | ||||||||||
| Property Class | Diameter | Length | ||||||||||
| Psi. Min. | N/mm2 | Metric | Inch* | Metric | Inch* | I. S. | ISO | DIN | B.S. | ANSI | JIS | |
| 190000 | 1,300 (12.9) |
M3 to M42 | 1/8 to 1' | 6 to 300mm | 3/8' to 1' | 2269 | 4762 | 912 | 4168 2470 |
B18.3.1M | B1176 | |

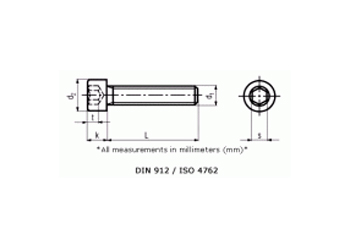

| d1 | t min | s | k max | d2 |
| M2 | 1 | 1.5 | 2 | 3.8 |
| M3 | 1.3 | 2.5 | 3 | 5.5 |
| M4 | 2 | 3 | 4 | 7 |
| M5 | 2.5 | 4 | 5 | 8.5 |
| M6 | 3 | 5 | 6 | 10 |
| M8 | 4 | 6 | 8 | 13 |
| M10 | 5 | 8 | 10 | 16 |
| M12 | 6 | 10 | 12 | 18 |
| M14 | 7 | 12 | 14 | 21 |
| M16 | 8 | 14 | 16 | 24 |
| M18 | 9 | 14 | 18 | 27 |
| M20 | 10 | 17 | 20 | 30 |
| M24 | 12 | 19 | 24 | 36 |
| M27 | 13.5 | 19 | 27 | 40 |
| M30 | 15.5 | 22 | 30 | 45 |
| M36 | 19 | 27 | 36 | 54 |
